The Product information of SABS Frequency Braking
System
The ABS (Anti-lock Braking System) for Bicycles
A.
Safety is necessary for bicycle riders, so that bicycles should install
ABS braking system to protect riders & avoid overturning, losing of control
due to slamming the brakes.
B.
SABS Frequency Braking System is the
first Anti-Lock Braking System for bicycles ever invented worldwide gains below
awards and also has the following features:
1. Awards:
n 2011
Gold Medal of Taiwan National Invention & Creation Award.
n 2010
Japan Good Design Award.
n 2010
Golden Pin Design Mark Award.
n 2008
Top prize of Braking Device Innovation Award by CHC.
n 2011
Gold Medal of Taipei International Invention Show & Technomart.
(Taipei INST)
2. Features:
(1)

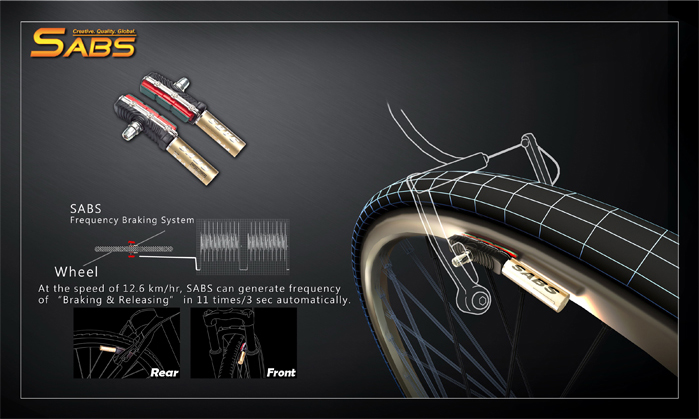

SABS generates a braking frequency from
a 100% mechanical structure, without requiring any electric, hydraulic or
pneumatic forces. The higher the speed is, the higher the frequency can be
generated.
(2) Simple, Light & graceful color design, which can be
suitable for V-Brake & C-Brake system to replace the normal brake shoes.
3.
Certifications:
(1)
The braking performance testing of SABS
has been certified by SGS (No TH70035/2011):
?It meets EN standard's braking
distance.
?It’s safe when slamming only the front
brake in the below situations:
-on the 30% slope of ARTC at 59 km/h.
-during a 53.6 km road test from altitude 3,275m down to
480m in rain, with the highest speed reaching 67.4 km/h.
(2)
It
can shorten the braking distance effectively (The chart below is the comparison
data by SGS performance testing at ARTC.)
Braking Use
|
The Standard of EN14766 (4.6.7.4.1)
|
By Using SABS
|
Front Brake only
|
-----
|
3.9 M
|
Rear Brake only
|
1 0 M
|
4.3 M
|
Both
|
6 M
|
3.8 M
|
(3) Certificated by
CHC for Mechanical Endurance Test (No. 09021901B)
(According to the
standard of Germany Mechanical Endurance Test DIN 79100:2000)
(4) Certificated by
CHC for Braking Performance Test (No. 08072101)
(According to the
standard of Europe Braking Distance EN 14766_4.6.7.4.1 & 4.6.7.4.2)
4.
Meets Environmental
protection requests:
The brake pad can be replaced by DIY
easily.
